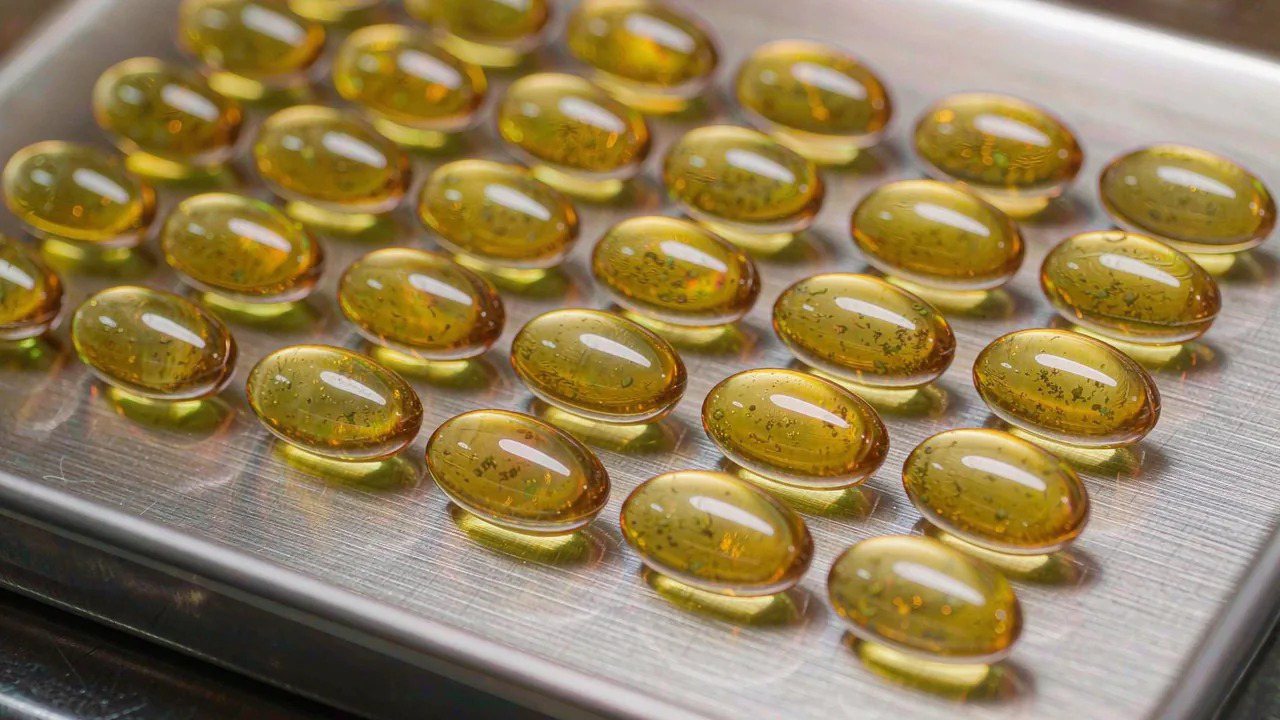

A cosmetic softgel capsule looks like a simple object: a sealed shell with serum inside. The manufacturing process behind it is not simple. Eight stages sit between a signed-off formula and a carton of finished capsules, and each one can quietly change the hardness, the leakage rate or the shelf life of what you sell.
This walkthrough is written for brand owners and sourcing managers who are specifying a capsule serum for the first time. It is not a sales pitch for a particular machine. It describes how a cosmetic softgel line typically runs, which variables matter, and where batches most often fail.
What a cosmetic softgel capsule actually is
A cosmetic softgel capsule is a sealed, one-piece shell holding a single dose of product. Unlike a hard two-piece capsule, the shell and the seal are formed in the same operation as the fill, which is why the format protects oxygen-sensitive actives better than an open jar.
The shell is a gel mass: a film-former (gelatin or a plant-based alternative), water, and a plasticiser such as glycerol or sorbitol. The fill is almost always anhydrous or very low in water, because any meaningful water content will migrate into the shell and soften it. This single constraint shapes everything downstream - which actives you can use, which claims you can support, and how the product must be packed.
The format has practical consequences for a brand. A capsule delivers a fixed dose, needs no preservative in an anhydrous fill, travels without leaking when packed correctly, and reads as clinical rather than cosmetic on a shelf. It also costs more per unit than a bottled serum and imposes stricter storage conditions. Those trade-offs are covered in our comparison of capsule, ampoule and single-dose formats.
Stage 1: Gel mass preparation - cooking, deaeration and holding
Gel mass is made by hydrating the film-former in water with plasticiser, then melting the mixture under vacuum. In most cosmetic lines the mass is held at a warm temperature long enough to become homogeneous and to release entrained air, because air bubbles in the ribbon become visible defects in the finished capsule.
Three things go wrong here more often than anywhere else. Incomplete deaeration leaves bubbles in the seam. Holding the mass too hot for too long degrades the film-former and produces shells that seal poorly. And a gel mass made in the morning and used in the afternoon without temperature control will have a different viscosity by the time it reaches the machine, which changes ribbon thickness and therefore fill weight.
For a brand, the practical question is simple: ask whether the gel mass is made fresh per batch and how long it is held. A supplier who holds mass overnight without control is accepting a variable you will eventually pay for in weight variation.
Stage 2: Fill preparation - why the serum must be nearly water-free
The fill is prepared as a separate stream: oils, esters, silicone alternatives, oil-soluble actives, fragrance if used, and any suspended material. It is deaerated and held at a controlled temperature because fill viscosity directly controls how accurately the pump can dose it.
Water is the enemy here. Even a few percent of water in the fill will migrate into the hydrophilic shell, plasticising it beyond specification. The capsule becomes soft, tacky, and prone to leaking in transit. This is why most serum capsule fills are anhydrous systems built on esters, squalane, or silicone-free oil blends rather than on water-based serums.
This constraint also decides which actives you can use. Water-soluble actives at meaningful levels are difficult in a traditional softgel. Oil-soluble actives, oil-dispersible powders, and encapsulated water-soluble materials are the realistic options. We cover how that shapes vitamin C specifically in our note on vitamin C in softgels.
Stage 3: Encapsulation - the rotary die process in plain terms
The standard cosmetic process is rotary die encapsulation. Two ribbons of gel mass are formed on cooled drums and fed between two rotating dies. At the moment the die pockets meet, a pump injects a measured volume of fill between the ribbons. Heat and pressure from the dies seal and cut the capsule in the same motion.
Timing is the whole game. The fill injection must happen in the fraction of a second when the pockets are aligned but not yet fully closed. If the pump fires early or late, the seal traps product in the seam, which later appears as leakage or as a thickened, uneven seam line.
Two process variables matter most to a buyer. Die temperature, which affects seal strength; and pump calibration, which affects dose accuracy. Both are measurable and both should be recorded per batch. Dose accuracy is treated separately in our article on fill weight tolerances.
Stage 4: Tumble drying - the first moisture checkpoint
Fresh capsules are soft and warm. They pass through rotating tumble dryers that keep them moving while air removes surface moisture and starts the drying of the shell. Movement matters: capsules left in contact with each other at this stage will stick and deform.
The purpose of this stage is not to finish the drying. It is to bring the capsule to a state where it can be spread on trays without deforming. A batch that skips or shortens this step produces capsules with flat spots and inconsistent shape, which is one of the more common cosmetic rejects in a visual inspection.
Stage 5: Tray drying - where most of the water leaves
Capsules are spread on trays and dried in controlled rooms. This is the slowest stage in the process and the one most often compressed when a factory is under delivery pressure.
Drying is driven by temperature, relative humidity and air movement over the trays. Equilibrium matters more than time: the shell and the fill exchange water until they reach a balance, and the final shell moisture determines hardness, brittleness and long-term stability. Cutting drying short produces capsules that meet specification on the day of packing and harden or leak three months later.
The full behaviour of moisture in this stage is covered in our article on water activity and humidity control. For a brand, the useful question is: what is the target shell moisture at release, and is it measured or assumed?
Stage 6: Inspection, sorting and what actually gets rejected
Finished capsules are inspected visually and, on better lines, by automated systems that reject units on shape, size, colour or the presence of surface oil. Manual inspection under good lighting remains common in cosmetic production because the defects are subtle.
The typical reject categories are: leakage or oil on the surface, seam defects, bubbles trapped in the shell, misshapen or stuck-together units, and size or colour outliers. A certain reject rate is normal and is built into pricing. A spike in any single category is a process signal, not bad luck - most leakage traces back to the seal or to over-filling.
Stage 7: Secondary packaging - blister, bottle or sachet
Capsules are packed into blister trays, bottles or sachets. Packaging is not a neutral choice here: it controls the moisture and oxygen exposure for the rest of the product's life.
Blister packs protect each capsule individually and are the usual choice for counted, gift-oriented or travel formats. Bottles are cheaper at higher counts but expose all remaining capsules each time the pack is opened. For oxygen-sensitive fills, barrier material and, in some cases, an oxygen absorber matter more than the pack style. Packaging compatibility is treated in detail in our packaging compatibility guide.
Stage 8: Release testing before the batch ships
Before a batch is released, a competent manufacturer checks appearance, average fill weight and weight variation, seal integrity, and microbiological limits where applicable. For a new formula, stability work should be running in parallel rather than starting after shipment.
The mistake buyers make is treating release testing as the end of quality control. It is a snapshot. Stability testing is what tells you whether the product will still meet specification at month twelve, and it should be commissioned before the first commercial run, not after. See our stability testing guide for what to commission and when.
Where batches usually go wrong
| Defect seen | Usual process cause | What prevents it |
|---|---|---|
| Oil on capsule surface | Over-fill, weak seal, or fill trapped in the seam | Pump calibration plus seam thickness checks |
| Capsules stuck together | Insufficient tumble drying before tray loading | Minimum tumble time before spreading |
| Brittle or cracked shells | Over-drying, or plasticiser level too low | Shell moisture target with in-process checks |
| Soft or tacky capsules | Water migrating from fill, or high room humidity | Anhydrous fill plus controlled drying rooms |
| Weight variation | Fill viscosity drift or worn pump parts | Viscosity control and scheduled pump maintenance |
| Colour variation between batches | Natural extract variability or oxidation | Reference standard approved before production |
What this means for your brief
Three items in a brief change the outcome more than anything else.
- Fill specification. State whether the fill is anhydrous, what the target viscosity is, and which actives are non-negotiable. A brief that says "vitamin C capsule" without naming the form and level will get you a derivative you did not intend.
- Shell preference. Gelatin or plant-based, and whether halal or kosher status is required for your market. This affects cost and lead time, not just the ingredient list.
- Acceptance criteria. Average fill weight, allowed variation, allowable defect rate per thousand, and shell moisture at release. Written criteria are the difference between a discussion and a dispute.
MOQ for a capsule run is driven by machine setup and gel mass preparation rather than by the capsules themselves. Expect the minimum to be set by line time, and expect a custom shape to add tooling. Our MOQ guide explains how the number is built.
Timeline: from approved sample to shipment
A realistic sequence for a new capsule product looks like this: formula development and laboratory samples, then a pilot run on production equipment to confirm the fill and shell actually work at scale, then stability and compatibility work in parallel, then the first commercial batch.
The pilot run is the step buyers try to skip and should not. Laboratory samples are made by hand or on small equipment; they tell you whether the formula is pleasant, not whether it runs. A pilot run is where you learn whether the fill pumps cleanly and whether the shell seals with that particular fill. Our sampling process article covers the sequence in detail.
Where our capsule capability fits
We produce softgel capsule serums in standard and custom shapes for brands selling under their own label. Standard formats include custom softgel face serum capsules and hyaluronic acid softgels. Custom silhouettes - heart, fan, racket and bespoke shapes such as our heart-shaped capsule serum - are produced with dedicated tooling.
We work with brands on private label (your brand on a proven base), OEM/ODM contract manufacturing, and full custom formula development - whichever matches where your brand is today.
Tell us the active, the target market, and the pack format you have in mind, and we will tell you what is realistic before you commit to tooling. Start at our inquiry page, email capsulebiotech@163.com, or reach us on WhatsApp at +86 158-7655-5319 (Capsule Series), +86 158-7655-5319 (Cosmetics Series).
This article is general manufacturing information, not regulatory or legal advice. Requirements vary by market and by formulation.
