The closure is the cheapest line on a personal care bill of materials, yet it is the part most often responsible for a rejected pallet. A disc top cap that leaks in transit costs more than the cap, the bulk, the bottle & the freight combined, & the failure is usually discovered by a retailer rather than by the brand. The common cause is not a defective cap; it is a cap that was never matched to the viscosity it has to meter.
Buyers meet the problem on the purchase order. Closure suppliers quote in tens of thousands, while the filling run may only be a few thousand units, so the brand commits to a closure volume it cannot consume before it has proven the pairing. This article covers neck finish, orifice diameter, the viscosity window, liner choice, torque, stress cracking, leak testing & distribution testing, & the brief details a factory needs before a closure is ordered. Viscosity control in water-rich surfactant systems is covered in our liquid soap viscosity guide, & closure formats for cleansers are compared in our cleanser packaging guide.
Why the closure is specified with the bulk, not after it

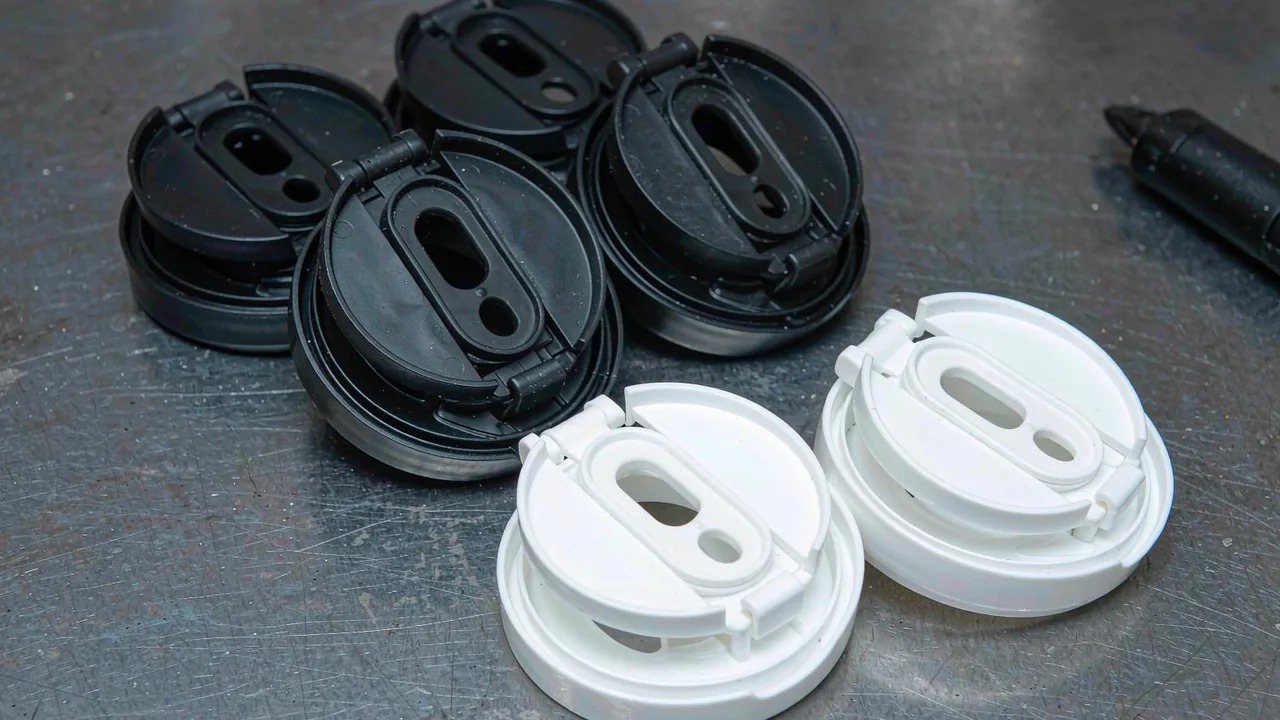

A disc top cap is a metering device. The orifice sets how much product leaves the bottle in one squeeze, the disc sets whether the orifice stays sealed in transit, & the liner sets whether the neck stays sealed at all. A formula that looked right in a jar behaves differently once it has to pass through a 5 mm hole, & the first person to notice is the person opening the carton.
The commercial consequence is that closure choice cannot be deferred. Bulk development runs on a sampling cycle of weeks, closure tooling & ordering runs on a cycle of months, & the two rarely align unless the brand forces them to. A buyer who locks the bulk first & shops for a cap second ends up choosing from whatever fits the neck, rather than from what meters the viscosity.
The fix is to write neck finish, orifice diameter & bulk viscosity as one specification. The three are written on the same sheet, the golden sample is made on the production closure rather than on a look-alike, & the closure reference is recorded in the batch record so a reorder six months later is measured against the unit the brand approved, not against a description.
Neck finish: the pairing starts at 24/410 or 28/410
The neck finish is the two-number code that defines the bottle mouth: the first number is the nominal diameter in millimetres, the second is the thread style. A 24/410 & a 28/410 are the two workhorse finishes for personal care, & the 410 designation refers to a standard buttress thread profile used across the industry. A 415 finish uses a taller thread & a modified neck, & it is not interchangeable with 410 in practice.
The trap is that a cap can thread on & still not seal. A mismatched finish gives a cap that seats visually, passes a pull test in the sample room, & then backs off under vibration in a truck. The seal is made by the liner compressing against the land, which is the flat top of the neck, so the land width & the neck height matter as much as the thread pitch.
The brief should name the finish, the land width & whether the neck has a tamper-evident bead. A tamper band needs a bead to catch on; without it the band rides up & the consumer sees a ring that never broke, which reads as a quality problem even though the seal is intact.
Orifice diameter: matching hole size to product flow
The orifice is the hole the product leaves through, & it is the single number that decides user experience. A 2 mm orifice suits a thin facial oil or a low-viscosity serum; 3 mm suits a light lotion or a runny gel; 5 mm to 6 mm is the band most shampoos, shower gels & liquid soaps live in; 8 mm & above serves thick conditioners, scrubs with suspended beads & body butters in squeeze formats.
The failure modes sit at both ends. Too small an orifice forces the user to squeeze hard, which pressurises the bottle, which pushes product past the seal & produces the leak that gets blamed on the cap. Too large an orifice lets a low-viscosity bulk glug out under its own weight, so the user gets far more than intended & the bottle empties in half the expected number of uses.
The orifice is also where clogging starts. A bulk with a high solids load, a scrub with exfoliating particles or a formula with a tendency to skin over will dry in the hole between uses. The residue narrows the effective diameter, the user squeezes harder next time, & the leak mechanism above repeats. A cap liner with a plug that seats into the orifice slows this down, because the plug displaces the air that would otherwise dry the residue.
The viscosity window a disc top can actually meter
Viscosity is measured in centipoise or millipascal-seconds, & the two are numerically the same. Most personal care bulks sit between roughly 1,000 & 30,000 cps at room temperature. Shampoo commonly lands in the low thousands, shower gel rather higher, & a thick conditioner or a cream-in-gel can run well into five figures.
The window matters because a disc top has no pump & no valve. Product leaves because the user squeezes, so the bulk must be thin enough to move through the orifice under hand pressure & thick enough not to run out under gravity. Below roughly 1,000 cps the bulk behaves like water & will find any gap in the seal; above roughly 30,000 cps the user cannot generate enough pressure, & the complaint stops being it leaked & becomes it will not come out.
Viscosity is also temperature dependent, which is where laboratory approvals go wrong. A bulk approved at 25 °C can thin by half at 40 °C, & a truck in summer reaches 40 °C. The viscosity window should therefore be specified with a temperature, & the leak test should be run after warm conditioning rather than only at ambient.
Cap body resin, hinge life, stress cracking
The cap body & the disc are usually polypropylene, chosen because the living hinge between the two survives repeated flexing. Homopolymer polypropylene is stiffer & gives a crisper snap; copolymer polypropylene absorbs impact better & is less likely to crack in cold conditions. The hinge is the weak point either way, & hinge life should be qualified by a flex cycle count rather than assumed.
The mechanism that kills hinged closures in personal care is environmental stress cracking. Surfactant systems, particularly concentrated anionic systems & formulations with a high solvent or oil fraction, can attack polypropylene under stress. The stress is already there because the hinge is moulded in a strained state, & the crack appears weeks after filling rather than during it.
The practical control is to qualify the closure against the actual bulk at temperature, not against water or against a generic reference fluid. A closure that survives a water fill can crack on a sulfate surfactant bulk, & the brand discovers this when the cartons are already in the warehouse. Where the risk is high, a closure resin with a higher stress crack resistance is specified, usually at a slightly higher unit cost.
Liners: foam polyethylene, induction seal aluminium, trade-offs
The liner does the sealing. Foamed polyethylene is the default for personal care: it compresses against the land, tolerates a slightly uneven neck & reseals after opening. It is cheap & forgiving, which is why it is specified even where a barrier is not strictly needed.
An induction seal aluminium laminate is a different proposition. It is applied after filling with a sealer that heats the foil layer, gives a hermetic barrier & tamper evidence, & must be removed by the user before first use. It costs more in both material & equipment, & it will not reseal, so anything that depends on the consumer reclosing the pack tightly goes back to foam.
The trade-off a buyer should weigh is leakage risk against user friction. A hermetic seal removes the transit leak mechanism almost entirely but adds a step the consumer may find annoying on a shower product used with wet hands. The packaging compatibility work behind that decision is described in our packaging compatibility guide, which sets out how a filled unit is qualified rather than an empty one.
Torque: application value, removal value, back-off
Torque is the rotational force used to put the cap on & the force needed to take it off. Application torque is set on the capping head; removal torque is measured after the cap has sat for a period, because the liner relaxes & the removal value drops from the applied value. Both numbers belong in the specification.
Under-application leaves a cap that vibrates loose in transit & leaks. Over-application distorts the liner, cracks the neck on a lightweight bottle, or produces a cap the consumer cannot open. The working approach is to set the application value, measure removal torque at a defined interval after capping, & confirm the removal value stays inside a band the target user can manage.
Back-off is the specific failure that torque testing catches. A capping head that drifts, a bottle neck that is out of round, or a liner that creeps under warm storage all reduce the grip, & the reduction shows up as removal torque falling below the applied value over days. Recording both numbers per run gives the factory a trend to watch rather than a single pass or fail.
Clogging, dried product, the closed-position seal
The disc closes by seating a plug or a raised ring into the orifice. The seal in the closed position is therefore a second, separate seal from the neck seal, & it is the one that fails after opening. A plug that is a fraction of a millimetre short leaves a film of product across the face of the orifice, & that film dries into a plug of its own.
The consumer-facing symptom is a cap that will not open cleanly or a first squeeze that delivers a hard skin rather than product. The brand-facing symptom is a review that says the product arrived dried up. Neither points at the closure, so the investigation usually starts with the formula & wastes a week.
The control is straightforward & rarely specified: state the closed-position seal as a requirement, ask for the plug geometry on the drawing, & include an open, close & reopen cycle in the sampling sequence on a filled unit that has been warm conditioned. A cap that passes on day one can fail on day thirty, & the only way to know is to cycle it.
Leak testing: the sequence worth specifying
Leak testing should be a sequence, not a single test. The first step is a visual & torque audit on the line: caps seated square, no cross-threading, no missing liner, & removal torque inside band. The second is an inverted storage test at an elevated temperature on filled, capped units, because inversion puts the bulk against the seal & heat thins it.
The third step is a pressure or vacuum decay test, where a sample of filled units is held under a pressure differential & the decay is measured. This catches a seal that is marginal rather than obviously broken, which is the category that produces intermittent complaints. It needs a defined sample size, a defined dwell time & a defined acceptance criterion; a test with none of those three is a demonstration, not a control.
The fourth is a check on the units that survived: weigh a set of bottles before & after the test. A leak that is small enough to pass a visual inspection still shows as mass loss, & mass loss is the number a buyer can argue with a supplier about. The weight method, the sample size & the rejection rule belong in the specification, not in a laboratory notebook.
Distribution testing: why filled packs fail where empty ones pass
Empty packs pass because they weigh almost nothing & carry no liquid against the seal. A filled bottle in a shipper has mass, & when a pallet drops or a vehicle brakes the mass pushes the bulk against the closure. The relevant test is therefore on the filled, packed unit in the outer shipper, not on the bottle & cap as components.
The standard approach is a distribution simulation in which cased units are subjected to drops, vibration & compression in a sequence intended to reproduce a journey. Shippers & retailers frequently reference published transit test protocols, & the sensible move is to ask which protocol a retailer expects before the artwork is printed, because a change to the shipper after launch costs more than the test.
The outcome the brand wants is a documented pass with sample sizes, conditioning & acceptance criteria written down. That document is what settles an argument later, & it is also what a retailer's quality team asks for when a complaint arrives. A claim that the pack is leakproof without that document behind it is a marketing statement, not a specification.
Disc top choices at a glance
The table below sets the main disc top variables against what each one changes in the finished unit, the trade-off a buyer should expect, & the point most often missed. The rows are a relative comparison drawn from common production experience, not fixed values, & the right setting for a specific line should be confirmed with the factory against the chosen bulk & bottle.
| Variable | What it changes | Typical trade-off | Watch point |
|---|---|---|---|
| Small orifice, 2 to 3 mm | Controlled dose for thin bulks | Low give, easy to dose | User squeezes harder, pressure risks the seal |
| Mid orifice, 5 to 6 mm | Standard flow for shampoo & gel | Good balance of flow & control | Thin bulks can glug under gravity |
| Large orifice, 8 mm & above | Flow for thick or particulate bulks | Fast dispense, fewer complaints | Over-delivery shortens the use cycle |
| Foam polyethylene liner | Resealable neck seal | Low cost, tolerates neck variance | Creep under heat reduces grip |
| Induction seal aluminium liner | Hermetic barrier & tamper evidence | Equipment cost, user must remove it | Does not reseal after opening |
| Homopolymer polypropylene body | Stiff cap, crisp snap | Cheap, widely tooled | Higher stress crack risk with surfactants |
| Copolymer polypropylene body | Impact tolerance, cold handling | Better crack resistance | Softer feel, slightly higher resin cost |
These are directions, not numbers. An orifice that meters one bulk cleanly can flood another at the same viscosity once temperature moves, so the orifice, the bulk & the test temperature should be fixed together. The usable setting for a specific product depends on the formula, the bottle neck & the closure reference, & it should be recorded in the batch record rather than left to the capping head.
What to put in the brief
State the bulk viscosity & the neck finish first, because everything else follows from those two numbers. Name the orifice diameter you expect, the liner type, the torque band you will accept, the markets you will sell into, & the tests you want run on filled units. A brief that names the closure last is a brief that gets rewritten after the first leak.
- The bulk viscosity at a stated temperature, with the method used to measure it.
- The neck finish code, the land width & whether the neck carries a tamper bead.
- The orifice diameter you expect, or the dose per squeeze you are designing to.
- The liner type: foam polyethylene, induction seal aluminium, or another option.
- The application & removal torque band, with the interval after capping for removal.
- The leak test sequence: inverted storage, pressure decay & weight loss, with sample sizes.
- The distribution test protocol a retailer expects, if the shipper is already known.
- The open, close & reopen cycle count you want proven on warm conditioned units.
Then confirm the golden sample will be made on the production closure, the production bottle & the production bulk. A sample on substitute parts is a different product, & the difference is exactly the one that shows up as a wet pallet rather than as a laboratory result.
